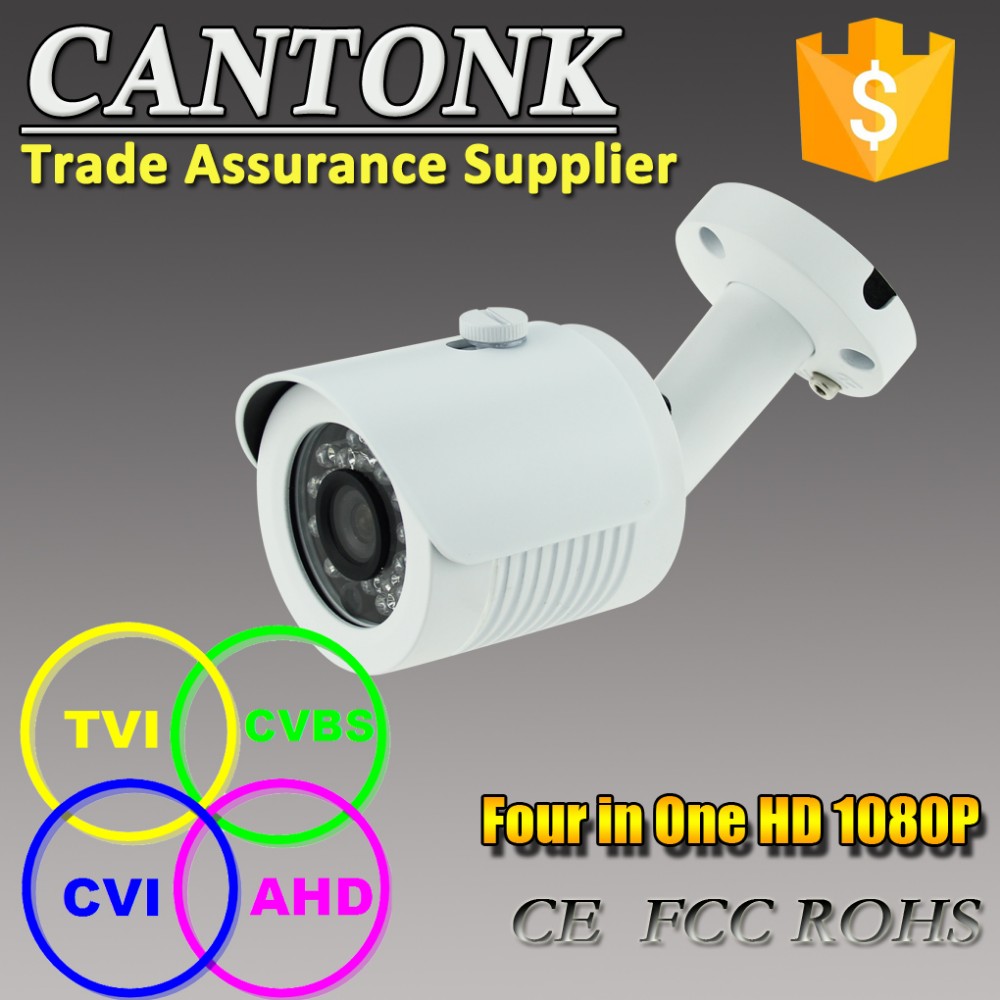

1080P 2 Megapixels camera motor zoom lens Waterproof Bullet camera

FOB Reference Price:Get Latest Price
US $1-14 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
200000 Piece/Pieces per Month
Port:
Guangzhou
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
CANTONK
Model Number:
KBR20HTC2003XEP
Type:
Hybrid Four in One
Style:
Bullet Camera
Sensor:
CMOS
Technology:
Infrared
Special Features:
Waterproof / Weatherproof
Image Sensor:
1/3" Panasonic 2.4MP CMOS Sensor
Resolution:
1080P
Warranty:
Two Years
Certificate:
ISO FCC CE RoHS
Lens:
2.8-8mm Motor Zoom & Auto Focus Lens
IR LED:
5(12μ) x 24PCS
IR Distance:
20m
Feature:
hybrid camera
Keyword:
four in one
Product name:
ahd tvi cvi cvbs 4 in 1 camera
Packaging & Delivery
Packaging Details
40pcs in one outer carton
Delivery Time
Shipped in 5 days after payment

1080P 2 Megapixels camera motor zoom lens Waterproof Bullet camera





Product Description



1/3" Panasonic 2.4MP CMOS Sensor, 1080P, With IR-CUT, Low Illumination
WDR, 3DNR, Defog, Sense-up, UTC, OSD(4-in-1: AHD, TVI, CVI, CVBS)



Model

KBR20HTC2003XEP

Image Sensor

1/3" Panasonic 2.4MP CMOS Sensor

Resolution

1080P

Signal System

PAL / NTSC

Minimum Illumination

0.01 Lux/F1.2

S/N Ratio

More than 50dB

Synchronous System

Internal

IR Distance

25 Meters (with 5 (12μ) x 24PCS Infrared LED)

IR Power On

Photodiode  AUTO Control

Video Output

AHD/CVI/CVBS/TVI

Functions

DWDR, DNR, UTC, OSD

Power/Current

DC12V(+/-10%)/500mA

Lens

2.8-8mm Motor Zoom & Auto Focus Lens

Weather Proof

IP66

Dimension (mm)

157(W) x 70(H) x 66(D)mm

Weight (g)

650

Operating Conditions

-10~+50℃  RH95% MAX





> Auto Gain Control(AGC)

  Built-in auto gain control (AGC)circuit. The color camera

  can get high definition picture in low Lux condition.



> Auto Electronic Shutter (AES)

  Built-in auto electronic shutter  function. The color

    camera’s AES speed can reach 1/100,000s.



> Gama Characteristic

    Camera Gama characteristicis 0.45.



> Scanning Mode

    NTSCor PALmode.



> Switch the output signal by OSD button

Press “left” key after 5 seconds then release : CVBS

Press “right” key after 5 seconds then release : TVI

Press “up” key after 5 seconds then release : AHD

Press “down” key after 5 seconds then release : CVI
