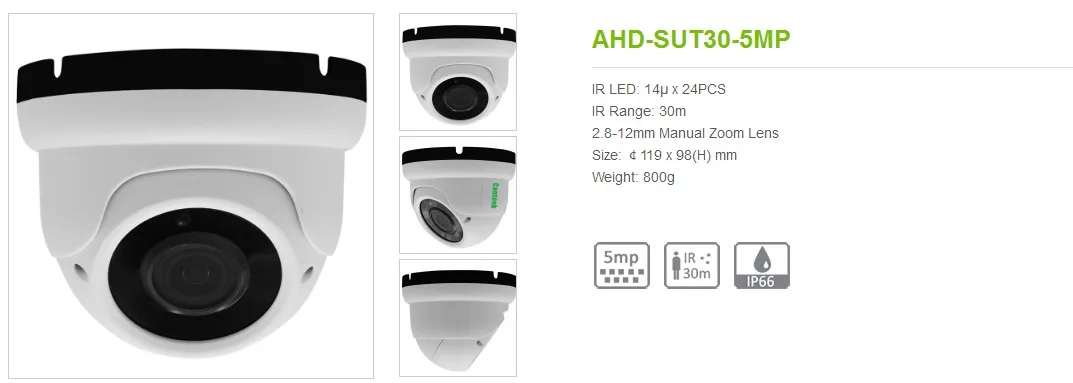

High image pixel Sony Starvis AHD Camera Motor Zoom & Auto Focus Lens cctv 5mp varifocal lens 1 in 4 HD video camera cctv

FOB Reference Price:Get Latest Price
US $41-41.5 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Cantonk
Model Number:
KDSUT30HTC5005XESM
Style:
Dome Camera
Sensor:
CMOS
Special Features:
Vandalproof & Weatherproof
Solution:
IMX335+EN781
Lens:
2.7-13.5mm Motor Zoom & Auto Focus Lens
Image Sensor:
1/2.9" SONY Starvis Back-illuminated CMOS Sensor, 4M
Warranty:
2 YEARS
Certificate:
CE/FCC/ROHS/ISO9001
IR LED:
14μ x 24PCS
IR range:
30M
Water Resistance:
IP66
AHD:
5M@20fps/12.5fps, 4M@30fps/15fps, 2M@30fps
TVI:
5M@ 12.5fps, 4M@15fps, 2M/1.3M@30fps
Type:
Digital Camera
Technology:
Infrared
Supply Ability
Supply Ability:
500000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Packed by colorful gift box(As your design)
Port
Guangzhou/Shenzhen
Lead Time :
Quantity(Pieces) 1 - 15 16 - 100 101 - 1000 >1000
Est. Time(day) 5 15 25 To be negotiated

High image pixel Sony Starvis AHD Camera Motor Zoom & Auto Focus Lens cctv 5mp varifocal lens 1 in 4 HD video camera cctv

Product Description

Model NO.KDSUT30HTC500FKKDSUT30HTC500NVKDSUT30HTC500FS
Video Output ModeAHD 5M/TVI 5M/CVI 4M/CVBSAHD 5M/TVI 5M/CVI 4M/CVBSAHD 5M/TVI 5M/CVI 4M/CVBS
Camera
Image SensorK03OV05A10IMX326
Image Resolution5MP5MP5MP
Effective Pixels5M:2592*1944 ; 4M:2560*14405M:2592*1944 ; 4M:2560*14405M:2592*1944 ; 4M:2560*1440
TV SystemPAL/NTSC
Electronic Shutter1/25s~1/50,000s , 1/30s~1/60,000s
S/N Ratio≥50dB
Scanning SystemProgressive Scan
Lens
Focus Length2.8-12mm
Focus ControlManual
Lens TypeManual
Pixels5M Pixels
Auto Iris SupportNO
Night Vision
Infrared LED 14µ x 24PCS
Infrared Distance30M
IR StatusUnder 10 Lux by CDS
IR Power OnCDS Auto Control
Camera Features
Starlight///
Day/NightYESYESYES
OSD Menu LanguageYESYESYES
White BalanceAUTO / MANUALAUTO / MANUALAUTO / MANUAL
Gain ControlAUTOAUTOAUTO
Noise ReductionDNR 2D/3D NRDNR
Picture TVjustmentYESYESYES
WDRYESYESYES
OSD SupportYESYESYES
UTCYESYESYES
Dip Switch///
General
HousingIP66
BracketNO
Dual VoltageNO
IR Cut FilterYES
HeaterNO
AudioNO
Operation Temperature-10 ~ +50 RH95% Max
Storage Temperature-20 ~ +60 RH95% Max
Power SourceDC12V±10%,800mA

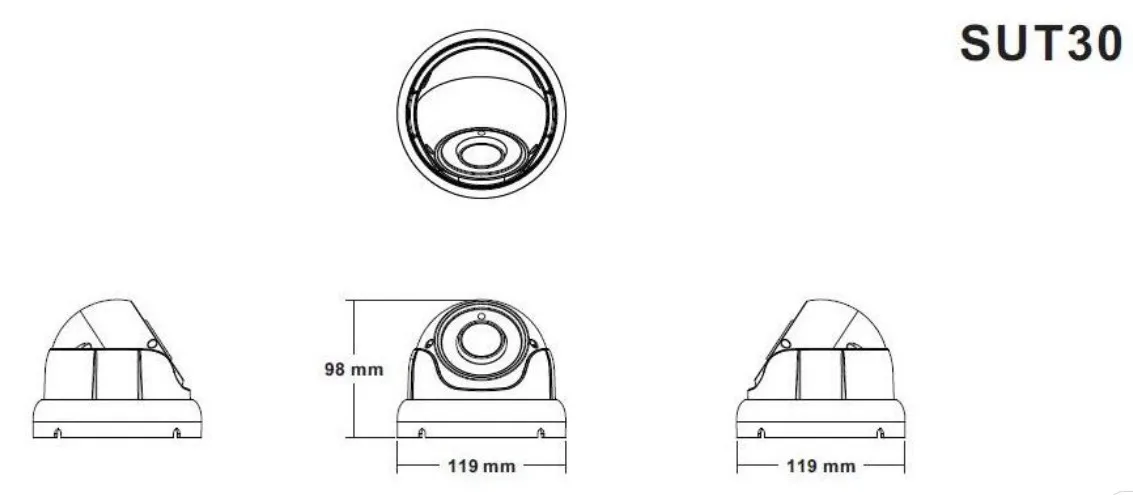

Dimension119 x 98(H) mm
Weight800g

Network  camera
