4ch 8ch 16ch CCTV Camera System VGA P2P all in one hd sdi hybrid monile Dvr

FOB Reference Price:Get Latest Price
US $15-23 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
CANTONK
Model Number:
XVRHC420
Type:
5-IN-1: AHD/CVI/TVI/IP/Analog
Video input:
IP, Analog, AHD, HD-CVI, HD-TVI
Video Output:
1xHDMI/1xVGA /1xCVBS
Audio input/output:
RCA 4CH In/ 1CH Out
Playback:
Support single channel/four channels mode.
Video Compression:
H.264 Video Compression
HDD:
2.5"/3.5" SATA, Up to 6TB
Alarm Input/Output:
Alarm 4CH In/ 1CH Out
remote view by:
Mobilephone (iPhone, iPad, Android)
Power consumption:
DC 12V ≤10W
SupplyAbility
SupplyAbility:
500000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
5pcs in one outer carton
Port
Guangzhou
Lead Time :
6 days after payment

4ch 8ch 16ch CCTV Camera System VGA P2P all in one hd sdi hybrid monile Dvr



Specifications
DIY Video Input: HD includes AHD, HD-CVI, HD-TVI
HD: Max 8CH@15fps / IPC: Max 16CH@30fps /  Analog: Max 8CH@30fps
Vidieo Output: 1xVGA /1xCVBS
Audio Input/Output: RCA 4CH In/ 1CH Out
Alarm Input/Output: Alarm 4CH In/ 1CH Out
Compression Method: H.264
HD: 1080N/720P, PAL every channel 1fps-15fps adjustable;
NTSC every channel 1fps-15fps adjustable;
Analog: 960H, PAL every channel 1fps-25fps adjustable;
NTSC every channel 1fps-30fps adjustable;
IPC: 5MP/4MP/3MP/2MP/1MP, etc (Total incoming bandwidth ≤50M),
PAL every channel 1fps-25fps adjustable; NTSC every channel 1fps-30fps adjustable;
Preview resolution: 1080P/720P
Playback: Support single channel/four channels mode.
Hexaplex operation simultaneously: Live, Recording, Playback, Network Operating
Static, Dynamic IP and DDNS, P2P, Support IE and special client software
1xRS422, 2 × USB, 1 × IR Controller, 1xRJ45(10M/100M/1000M adaptive Ethernet interface)
2 SATA Hard Disk interface (2.5"/3.5" SATA, Up to 6TB)
Backup: USB2.0 (such as U disk, USB drive) and Network
Support remote view by Mobilephone(iPhone, iPad, Android)
Power consumption: DC 12V  ≤10W
Dimensions (L×W×H): 354*280*50(mm) Weight: 2kg



Specification
 Product Description



     1. Main Menu:

menu_1

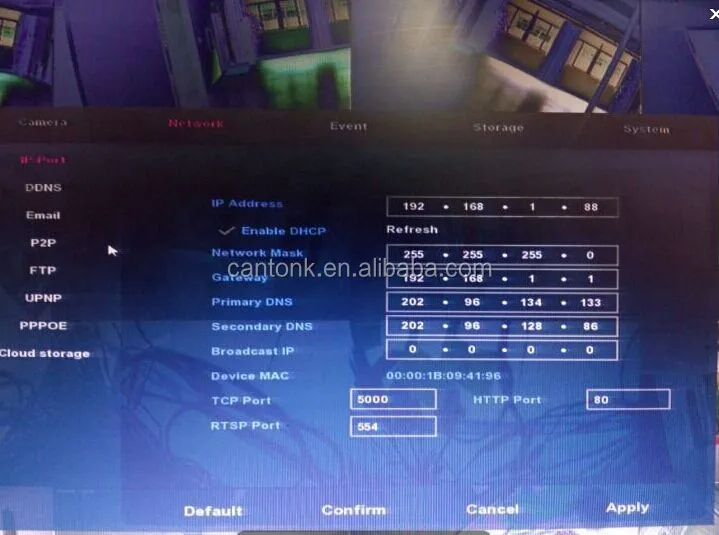

     2. Network Setting: IP Address, DDNS, P2P, FTP...

menu_2

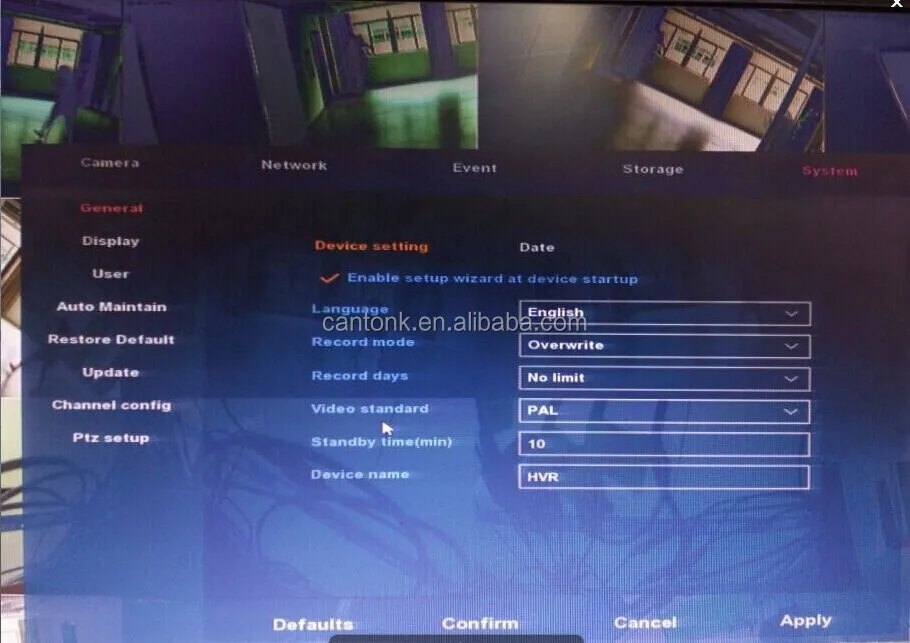

     3. System setting:

menu_3

Packaging & Shipping

Cantonk Package Color Box: (OEM your color box is accepted.)



color box.jpg

Shipping Method:

We will help you get the cheapest freight charge among below shipping method.




Related Products

KIP-CC30 60 90.jpg KIP-DH20.jpg CK-A9225PN.jpg KIP-CW30 60 90.jpg

Our Services

OEM & ODM Service

1. LOGO
Three requirements need be satisfied at the same time for Customers' Logo printing:
a. Quantity for each models need be more than 10pcs
b. Quantity for all models need be more than 50pcs
c. Logo should be One or Two colors only, and we need high resolution clear logo in JPG format.

Otherwise you can add USD 30 as LOGO printing fee.

2. Label
Please send us your own model number, serial or barcode numbers, and also the special designs if required.

3. User manual
We can put only customers' model number on the user manual by free of charge. If you have special requirement, please provide the finished manual file that can be printed directly.

4. Color Box
Design your own style based on the design file we provided, and then send it back to us. Samples
will be sent to you for checking before mass production

5.  Free ODM
Our New MOLD FACTORY is waiting for your new design and new innovation.
