2MP security camera system 2MP cctv system XVR KITS AHD TVI CVI IP CVBS KITS Diy CCTV Camera Kits

FOB Reference Price:Get Latest Price
US $90-118.3 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
CANTONK or OEM
Model Number:
XVRPGH420PLF20
Type:
4CH XVR kits
DVR:
1pcs 4CH Tribrid HVR
DVR Tribrid:
AHD/Analog/IP/CVI/TVI
DVR Resolution:
1080N/720P
Camera:
4pcs 1080P AHD dome Camera
Camera IR Distance:
20M
HDD:
1pcs 1TB Seagate
Cable:
4pcs 20m
Certificate:
SGS/CE/FCC/ROHS/ISO9001
warranty:
2 years
SupplyAbility
SupplyAbility:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard Neutral package or customers' design package
Port
GUANGZHOU or SHENZHEN
Lead Time :
Shipped in 7 days after payment
Detailed Images
Product Description

Very Cheap 4CH XVR kits AHD DVR CVR NVR Kits 4PCS 1080p AHD cameras standalone Surveillance Security Camera CCTV System

Item number:HVR04NB10PL20

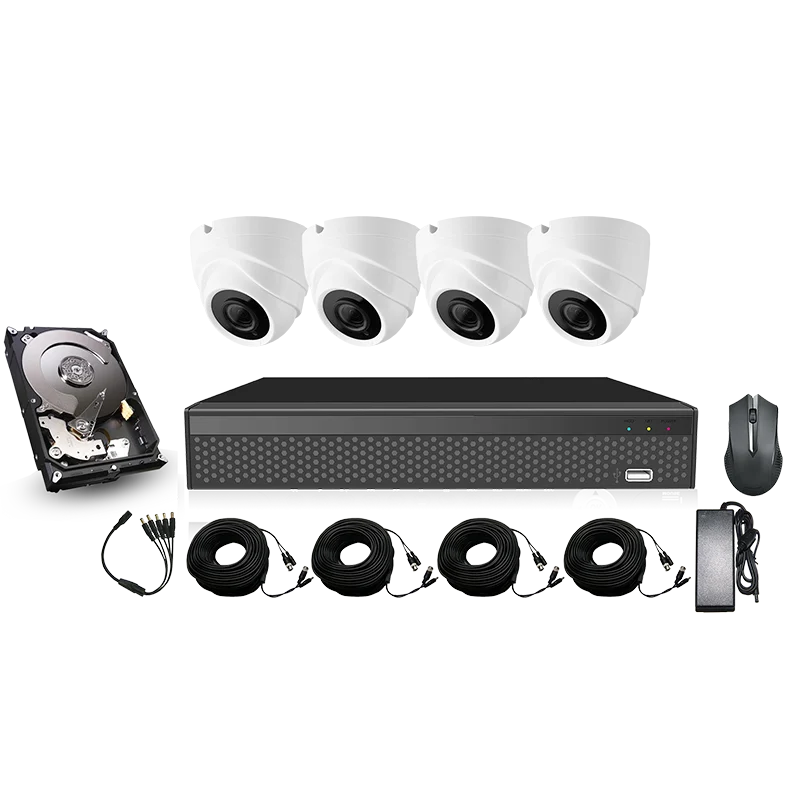

Kits Including:
1pcs 4CH 1080N Tribrid XVR
4pcs 1080P AHD plastic dome camera
4pcs 20m cables
1pcs 1TB HDD
1pcs remote controller
1pcs mouse
2pcs power supply
DVR specification:
*Video Input/Output: BNC 4CH In/ VGA 1CH Out/ 1CH Out
*Audio Input/Output: RCA 4CH In/ 1CH Out
*Compression Method: H.264
*AHD: 1080N/720P, PAL@1fps‐25fps adjustable; NTSC@1fps‐30fps adjustable;
*Analog: 960H/D1, PAL@1fps‐25fps adjustable; NTSC@1fps‐30fps adjustable;
*IPC: 1080P, PAL@1fps‐25fps adjustable; NTSC@1fps‐30fps adjustable;
*Preview resolution: 1080P/720P/960H
Multi‐channel playback: 4CHx1080N@12fps / 4*720P@25fps
*Hexaplex operation simultaneously: Live, Recording, Playback, Network Operating
*Static, Dynamic IP and DDNS, P2P, Support IE and Special Client Software
*PTZ, 2×USB, 1xRJ45, 1xIR Controller
*1 SATA Hard Disk Interface (Up to 4TB)
*Backup: USB2.0 (such as U disk, USB Drive) and network
*Support remote view by Mobilephone (iPhone, Android)
*DC 12V5A (with adaptor, with 1TB Seagate hard disk ST1000VX000)
*Dimention of HVR (LxWxH): 260*190*43 (mm)
*Weight of Kit: 6 kgs
Camera specification:
1/4" OV 1.0MP CMOS Sensor, 720P, With IR‐CUT, DNR
Plastic IR Dome AHD Camera
IR LED: 14μ x 18PCS
IR LED: ¢5 (12μ) x 24PCS (Optional)
IR range: 20M
Board Lens 3.6mm/F2.0
Add USD0.8 for 2.8mm Lens
Size: 90.5(W) x 80(H) x 80(D)mm
Weight: 300g
                            All Solutions of HDTVI/HDCVI/HDSDI/AHD Camera in Cantonk

  720P
OV9732+HTC960
1/4" OV 1.0MP CMOS Sensor, 720P, With IR‐CUT, DNR
AR0141H+HTC960
1/4" Aptina 1.0MP CMOS Sensor, 720P, With IR‐CUT, Low Illumination, DNR

 960P
OV9750+HTC960
1/3" OV 1.3MP CMOS Sensor, 960P, With IR‐CUT, Low Illumination, DNR
IMX225+NVP2431H
1/3" SONY 1.3MP CMOS Sensor, 960P, With IR‐CUT, Low Illumination, DWDR, 3D NR, Sense‐up, UTC
960P
( 4 in 1 )
S3130+HTC960E
1/3" 1.3MP CMOS Sensor, 960P, With IR‐CUT, DWDR, DNR, UTC, OSD





1080P
(TVI/CVI/AHD/CVBS 4 in 1 )
PS5220+HTC1080
1/2.7" Pixart 2.1MP CMOS Sensor, 1080P, With IR‐CUT, DWDR, DNR, UTC, OSD
IMX322+NVP2441H
1/2.9" SONY 2.4MP CMOS Sensor, 1080P, With IR‐CUT, Low Illumination, DWDR, 3D NR, Sense‐up, OSD
AR0237+NVP2441H
1/2.7" Aptina 2.1MP CMOS Sensor, 1080P, With IR‐CUT, Low Illumination, DWDR, 3D NR, Sense‐up,UTC, OSD
OV2710+HTC1080
1/2.7" OV 2.1MP CMOS Sensor, 1080P, With IR‐CUT, Low Illumination, DWDR, DNR, UTC, OSD
IMX323+HTC1088
1/2.9" SONY 2.4MP CMOS Sensor, 1080P, With IR‐CUT, Low Illumination, WDR, 3DNR, Defog, Sense‐up, UTC, OSD
IMX291+HTC1088
1/2.8" SONY 2.1MP Starvis Back‐illuminated CMOS Sensor, 1080P, With IR‐CUT, WDR, 3DNR, Defog, Sense‐up, UTC, OSD
1080P HDTVI
IMX322+NVP2440H
1/2.9" SONY 2.4MP CMOS Sensor, 1080P, With IR‐CUT, Low Illumination DWDR, 3D NR, Sense‐up, OSD, UTC, 2x BNC Output
1080P HDSDI
IMX291+EN771T
1/2.8" SONY 2.1MP Starvis Back‐illuminated CMOS Sensor, 1080P, With IR‐CUT, DWDR, DNR, UTC, OSD
3MP (TVI/CVI/AHD)
AR0330+HTC1080
1/3" Aptina 3.1MP CMOS Sensor,3M/1080P/ 960H, With IR‐CUT, DWDR, DNR, UTC, OSD
1080P TVI/CVI/AHD/CVBS 4 in 1 4X Motorized zoom
IMX323+HTC1088
1/2.9" SONY 2.4MP CMOS Sensor, 1080P, With IR‐CUT, Low Illumination
WDR, 3DNR, Defog, Sense‐up, UTC, OSD 2.8‐12mm Motor Zoom & Auto Focus
IMX291+HTC1088
1/2.8" SONY 2.1MP Starvis Back‐illuminated CMOS Sensor, 1080P, With IR‐CUT, WDR, 3DNR, Defog, Sense‐up, UTC, OSD 2.8‐12mm Motor Zoom & Auto Focus
1080P HDSDI 4X Motorized zoom
IMX291+EN771T
1/2.8" SONY 2.1MP Starvis Back‐illuminated CMOS Sensor, 1080P, With IR‐CUT,WDR, 3DNR, Defog, Sense‐up, UTC, OSD 2x BNC Output 2.8‐12mm Motor Zoom & Auto Focus
Online Demo
Type
Solution
Web ID
user& password
Model
2MP IPC
IMX322 + S2L
http://183.62.9.98:9038
user: CANTONK
password: CANTONK
KIP-200CF40A
3MP IPC
IMX124 + S2L
http://183.62.9.98:8003
KIP-300NF60A
4MP IPC
OV4689 + S2L
http://183.62.9.98:8032
KIP-400CU40A
5MP IPC
IMX178 +Hi3516A
http://183.62.9.98:8016
KIP-500RG40H
2MP IP PTZ
OV2715+Hi3516C
http://192.168.10.244:8044
KIP-AH10XS20
AHD camera&DVR
http://183.233.190.41:8850
user: user
password: 123456

CVI camera&DVR
http://183.233.190.41:8849
TVI camera&DVR
http://183.233.190.41:8862
SDI camera&DVR
http://183.233.190.42:8000

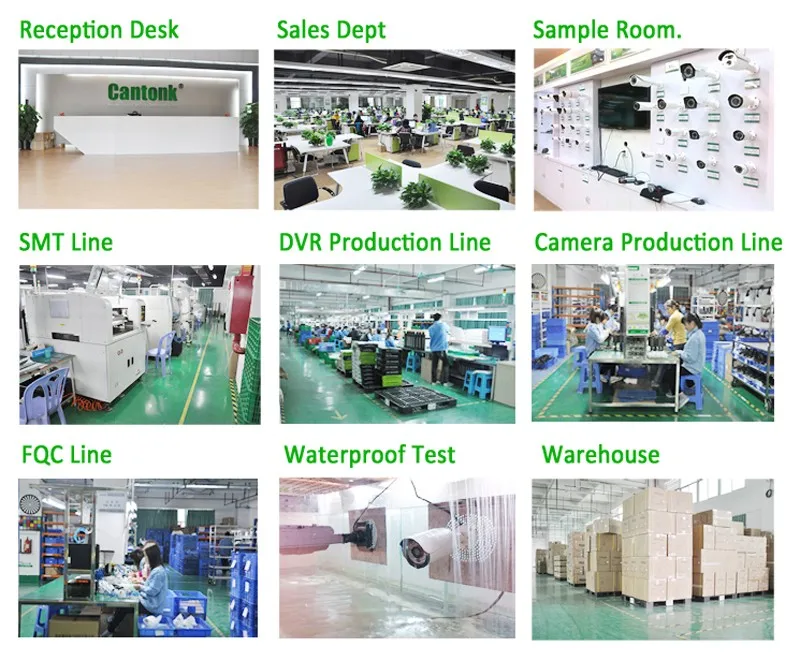

Our Company

Guangzhou Cantonk Corporation Limited

1. Founded in 2006, Focus on researching and

producing CCTV camera and DVR

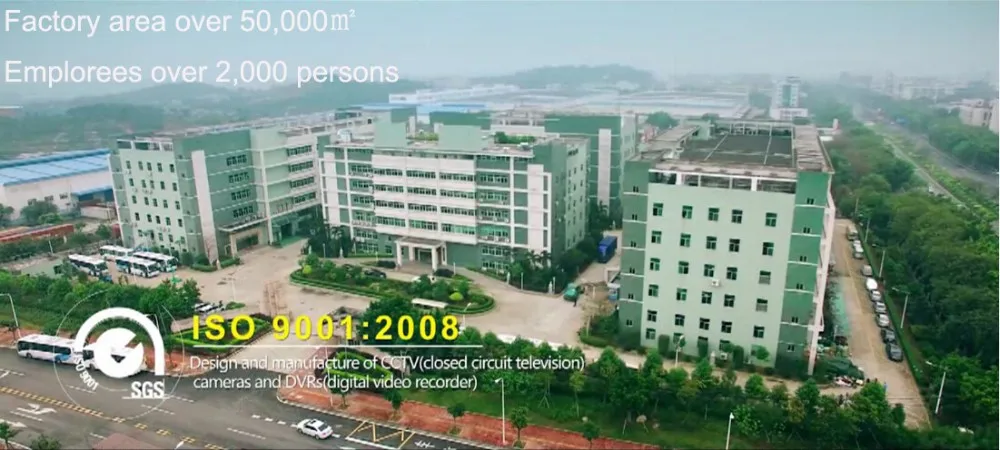

2. 2000 Employees, 50000 Square Meters factory scale
3. Output ability:500000pcs/month
We mainly produce CCTV camera and DVR:
1. 1MP,2MP,3MP AHD/HDTVI/HDCVI/HDCVI camera
2. 1MP,1.3MP,2MP,3MP,4MP,5MP,4K IP camera
3. 6MP fisheye IP camera
4. 1.3MP,2MP AHD/HDCVI/HDTVI,IP PTZ camera
5. Motorized Zoom camera, Analog camera
6. AHDDVR,HVR,CVR,TVR and wifi kits

ISO Certificate

CE Certificate

Business License

FAQ

How to order from us?

1. Please ask for pricelist and confirm the model numbers and quantities that you would like to purhcase with Mr.Jimmy.
2. We will send you a Proforma Invoice with best shipping cost once get your order list. By courier, by air or by sea is available.
3. When get your payment, we can arrange production for you immediately.
4. When your order is finished , we will notice you and arrange shipping for you.

What is the conditions?

1. No limit for first sample purchase; Above 50 pcs after sample order .
2. Payment term
T/T, Paypal and L/C for option
a. By T/T: Bank transfer to Cantonk company bank account
b. By Paypal: There will be 4% of total price as paypal fee
c. By L/C(letter of credit): the order is more than USD20,000.00
3. Lead time
a. 7 Days after payment arrived, for sample order less than 15PCS
b. 10-14 Days after payment For a stock order

What is the warranty?

All of our products are 100% passed strictly quality inspection before delivery.We provide Two years warranty for CCTV Camera and DVR after the shipment date.
1. For the products that prove defective under normal usage, if our customers could repair the products by themselves, we will supply the spare parts.
2. If the customers couldn't repair the products, the products need to be shipped back to us. We repair and afford 50% of freight charge.
3. If the products are broken by violence, carelessness, repaired or altered without the authorization, we will not be responsible for the warranty.

Packing & Delivery

Color Box

1.Standard Neutral color box is Green+Black color as the picture

2, we can make OEM box as customers' design

Delivery

1. For sample order,we can ship for you by courier ,such as DHL,FEDEX,TNT,UPS

2, For large stock order, We can ship for you by air or by sea.

3, Customers' own shipping agency is available.

Exhibitions
